- 8-channel ultra-high-performance, true-diversity receivers in a ½ rack size (8.0” x 6.6” x 1.6”).
- Expandable to 12 or 16 channels via Astral ARX16 4-Channel Expansion License. Licenses are $2500 USD, or $250 USD for a 7-day rental, or $850 USD for a 30-day rental.
- 169 MHz – 1525 MHz tuning range via SpectraBand Technology.
- NexLink: an advanced long-distance modulation that allows for remote control of wireless transmitters from the receiver.
- Dante audio-over-IP of RF receiver audio.
- Flexible powering: via PoE+, DC input, 8-Series, or AC mains (with optional adapter).
- Web App control from browser on any computer, smartphone or tablet.
- Full remote operation capability: Power via PoE, audio via Dante, control via Web App.
- Dual DB-25 connectors for 16 channels of mic, line, or AES outputs
- Convert 16 channels of Dante to analog and/or AES on DB25 connectors, for sending IFB, voice-of-god, and more from mixer to set.
- Wide, 6.2” color OLED array with touch for control and monitoring.
- Integrated Real Time Spectrum Analyzer (RTSA) and scanning for intuitive frequency coordination.
- Optical Fiber Network option via SFP slot. SFP accepts a wide variety of modular network transceivers.
- Astral-QuickDock allows docking and undocking in seconds from 8-Series mixer-recorders with no tools.
- The AutoAssign function automatically scans the current tuning band for clean frequencies and assigns them to multiple channels. The clean frequencies are automatically pushed to NexLinked transmitters.
Audio

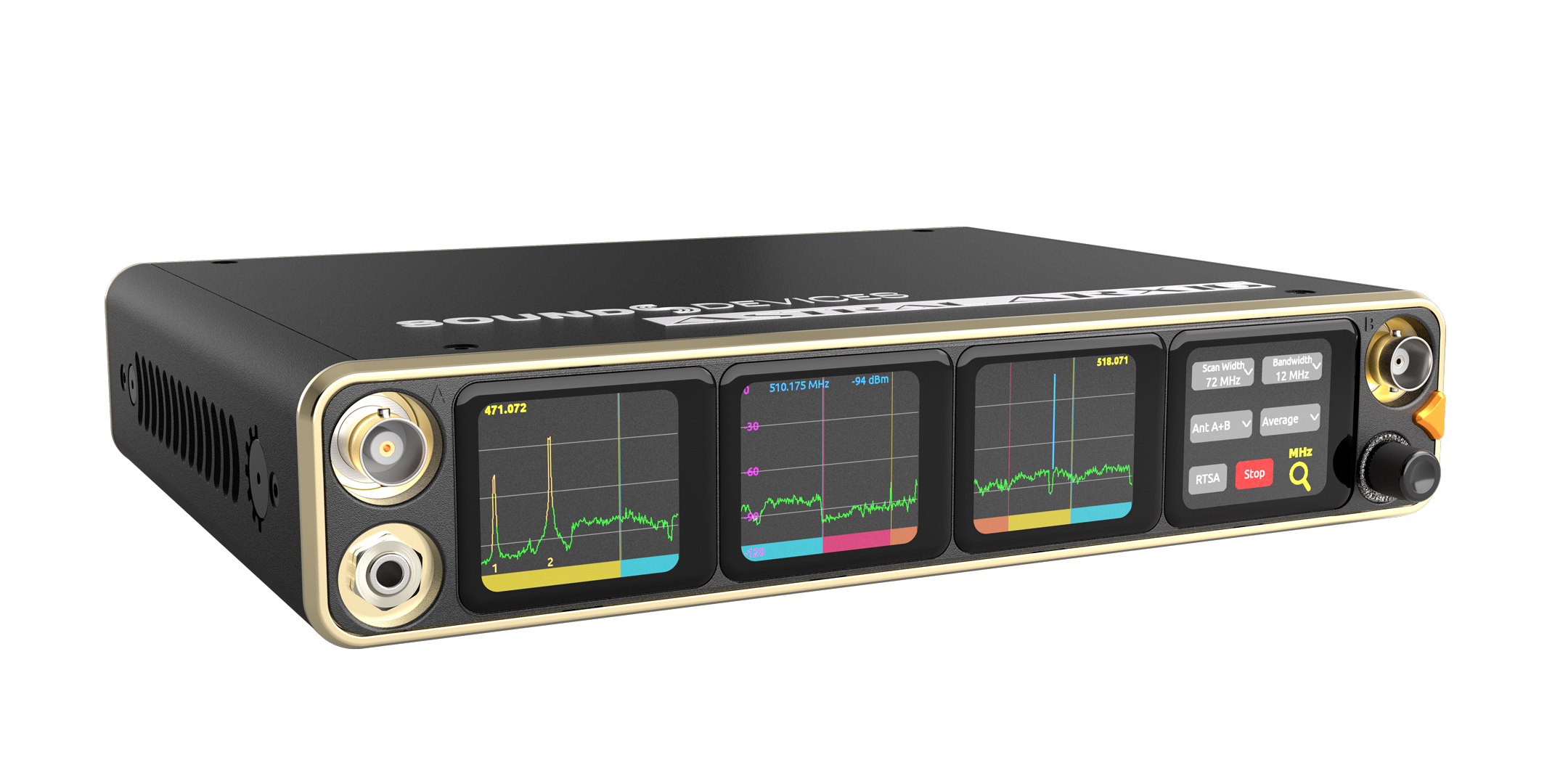

Astral ARX16
Meet the half-rack receiver with an entire rack’s worth of features. The next-generation Astral ARX16 is expandable from 8 channels up to 12 and 16 with additional software and features forward-thinking technologies like SpectraBand, the powerful NexLink remote-control link, real time spectrum analysis, and more. With multiple options for audio outputs, powering, and remote control, the Astral ARX16 can seamlessly adapt to your workflow, both now and in the future.
